# Реалізація інформаційного та програмного забезпечення
# SQL-скрипт для створення на початкового наповнення бази даних
-- MySQL Workbench Forward Engineering
SET @OLD_UNIQUE_CHECKS=@@UNIQUE_CHECKS, UNIQUE_CHECKS=0;
SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0;
SET @OLD_SQL_MODE=@@SQL_MODE, SQL_MODE='TRADITIONAL,ALLOW_INVALID_DATES';
-- -----------------------------------------------------
-- Schema MyDB
-- -----------------------------------------------------
DROP SCHEMA IF EXISTS `MyDB` ;
-- -----------------------------------------------------
-- Schema MyDB
-- -----------------------------------------------------
CREATE SCHEMA IF NOT EXISTS `MyDB` ;
USE `MyDB` ;
-- -----------------------------------------------------
-- Table `MyDB`.`file`
-- -----------------------------------------------------
DROP TABLE IF EXISTS `MyDB`.`file` ;
CREATE TABLE IF NOT EXISTS `MyDB`.`file` (
`id` INT NOT NULL,
`name` VARCHAR(255) NOT NULL,
`description` VARCHAR(255) NULL,
`uploadDate` DATETIME NOT NULL,
`lastEditTime` DATETIME NOT NULL,
`format` VARCHAR(45) NOT NULL,
`hasVisualization` TINYINT(1) NOT NULL,
`authorId` INT NOT NULL,
`country` VARCHAR(45) NOT NULL,
PRIMARY KEY (`id`))
ENGINE = InnoDB
DEFAULT CHARACTER SET = utf8;
-- -----------------------------------------------------
-- Table `MyDB`.`role`
-- -----------------------------------------------------
DROP TABLE IF EXISTS `MyDB`.`role` ;
CREATE TABLE IF NOT EXISTS `MyDB`.`role` (
`id` INT UNSIGNED NOT NULL,
`name` VARCHAR(45) NOT NULL,
`description` VARCHAR(255) NULL,
PRIMARY KEY (`id`),
FULLTEXT INDEX `idx_title_description` (`name`, `description`))
ENGINE = InnoDB;
-- -----------------------------------------------------
-- Table `MyDB`.`user`
-- -----------------------------------------------------
DROP TABLE IF EXISTS `MyDB`.`user` ;
CREATE TABLE IF NOT EXISTS `MyDB`.`user` (
`id` INT NOT NULL,
`nickname` VARCHAR(45) NOT NULL,
`firstname` VARCHAR(45) NOT NULL,
`lastname` VARCHAR(45) NULL,
`email` VARCHAR(255) NOT NULL,
`password` VARCHAR(255) NOT NULL,
`role_id` INT UNSIGNED NOT NULL,
PRIMARY KEY (`id`),
INDEX `fk_user_role1_idx` (`role_id` ASC),
CONSTRAINT `fk_user_role1`
FOREIGN KEY (`role_id`)
REFERENCES `MyDB`.`role` (`id`)
ON DELETE NO ACTION
ON UPDATE NO ACTION)
ENGINE = InnoDB
DEFAULT CHARACTER SET = utf8;
-- -----------------------------------------------------
-- Table `MyDB`.`request`
-- -----------------------------------------------------
DROP TABLE IF EXISTS `MyDB`.`request` ;
CREATE TABLE IF NOT EXISTS `MyDB`.`request` (
`id` INT UNSIGNED NOT NULL AUTO_INCREMENT,
`target` VARCHAR(255) NOT NULL,
`type` VARCHAR(45) NOT NULL,
`date` DATETIME NOT NULL,
`user_id` INT NOT NULL,
PRIMARY KEY (`id`),
INDEX `fk_request_user1_idx` (`user_id` ASC),
CONSTRAINT `fk_request_user1`
FOREIGN KEY (`user_id`)
REFERENCES `MyDB`.`user` (`id`)
ON DELETE NO ACTION
ON UPDATE NO ACTION)
ENGINE = InnoDB
DEFAULT CHARACTER SET = utf8;
-- -----------------------------------------------------
-- Table `MyDB`.`right`
-- -----------------------------------------------------
DROP TABLE IF EXISTS `MyDB`.`right` ;
CREATE TABLE IF NOT EXISTS `MyDB`.`right` (
`id` INT UNSIGNED NOT NULL,
`name` VARCHAR(255) NOT NULL,
PRIMARY KEY (`id`))
ENGINE = InnoDB
DEFAULT CHARACTER SET = utf8;
-- -----------------------------------------------------
-- Table `MyDB`.`filter`
-- -----------------------------------------------------
DROP TABLE IF EXISTS `MyDB`.`filter` ;
CREATE TABLE IF NOT EXISTS `MyDB`.`filter` (
`id` INT NOT NULL,
`keyword` VARCHAR(255) NULL,
`country` VARCHAR(45) NULL,
`format` VARCHAR(45) NULL,
`request_id` INT UNSIGNED NOT NULL,
PRIMARY KEY (`id`),
INDEX `fk_filter_request1_idx` (`request_id` ASC),
CONSTRAINT `fk_filter_request1`
FOREIGN KEY (`request_id`)
REFERENCES `MyDB`.`request` (`id`)
ON DELETE NO ACTION
ON UPDATE NO ACTION)
ENGINE = InnoDB
DEFAULT CHARACTER SET = utf8;
-- -----------------------------------------------------
-- Table `MyDB`.`search`
-- -----------------------------------------------------
DROP TABLE IF EXISTS `MyDB`.`search` ;
CREATE TABLE IF NOT EXISTS `MyDB`.`search` (
`request_id` INT UNSIGNED NOT NULL,
`file_id` INT NOT NULL,
PRIMARY KEY (`request_id`, `file_id`),
INDEX `fk_search_file1_idx` (`file_id` ASC),
CONSTRAINT `fk_search_request1`
FOREIGN KEY (`request_id`)
REFERENCES `MyDB`.`request` (`id`)
ON DELETE NO ACTION
ON UPDATE NO ACTION,
CONSTRAINT `fk_search_file1`
FOREIGN KEY (`file_id`)
REFERENCES `MyDB`.`file` (`id`)
ON DELETE NO ACTION
ON UPDATE NO ACTION)
ENGINE = InnoDB
DEFAULT CHARACTER SET = utf8;
-- -----------------------------------------------------
-- Table `MyDB`.`permission`
-- -----------------------------------------------------
DROP TABLE IF EXISTS `MyDB`.`permission` ;
CREATE TABLE IF NOT EXISTS `MyDB`.`permission` (
`id` INT UNSIGNED NOT NULL,
`name` VARCHAR(255) NOT NULL,
`right_id` INT UNSIGNED NOT NULL,
PRIMARY KEY (`id`),
INDEX `fk_permission_right1_idx` (`right_id` ASC),
CONSTRAINT `fk_permission_right1`
FOREIGN KEY (`right_id`)
REFERENCES `MyDB`.`right` (`id`)
ON DELETE NO ACTION
ON UPDATE NO ACTION)
ENGINE = InnoDB
DEFAULT CHARACTER SET = utf8;
-- -----------------------------------------------------
-- Table `MyDB`.`grant`
-- -----------------------------------------------------
DROP TABLE IF EXISTS `MyDB`.`grant` ;
CREATE TABLE IF NOT EXISTS `MyDB`.`grant` (
`right_id` INT UNSIGNED NOT NULL,
`role_id` INT UNSIGNED NOT NULL,
PRIMARY KEY (`right_id`, `role_id`),
INDEX `fk_grant_role1_idx` (`role_id` ASC),
CONSTRAINT `fk_grant_right1`
FOREIGN KEY (`right_id`)
REFERENCES `MyDB`.`right` (`id`)
ON DELETE NO ACTION
ON UPDATE NO ACTION,
CONSTRAINT `fk_grant_role1`
FOREIGN KEY (`role_id`)
REFERENCES `MyDB`.`role` (`id`)
ON DELETE NO ACTION
ON UPDATE NO ACTION)
ENGINE = InnoDB
DEFAULT CHARACTER SET = utf8;
-- -----------------------------------------------------
-- Table `MyDB`.`access`
-- -----------------------------------------------------
DROP TABLE IF EXISTS `MyDB`.`access` ;
CREATE TABLE IF NOT EXISTS `MyDB`.`access` (
`role_id` INT UNSIGNED NOT NULL,
`file_id` INT NOT NULL,
PRIMARY KEY (`role_id`, `file_id`),
INDEX `fk_access_file1_idx` (`file_id` ASC),
CONSTRAINT `fk_access_role1`
FOREIGN KEY (`role_id`)
REFERENCES `MyDB`.`role` (`id`)
ON DELETE NO ACTION
ON UPDATE NO ACTION,
CONSTRAINT `fk_access_file1`
FOREIGN KEY (`file_id`)
REFERENCES `MyDB`.`file` (`id`)
ON DELETE NO ACTION
ON UPDATE NO ACTION)
ENGINE = InnoDB
DEFAULT CHARACTER SET = utf8;
SET SQL_MODE=@OLD_SQL_MODE;
SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS;
SET UNIQUE_CHECKS=@OLD_UNIQUE_CHECKS;
# RESTfull сервіс для управління даними(Python, FastAPI, sqlalchemy)
RESTfull сервіс створено на мові програмування Pyhon, використовуючи модули FastAPI та sqlalchemy. Даний сервіс створено за моделю MVC (Model-View-Controller), з його допомогою розробник може легко взаємодіяти з базою даних, уникаючи використання SQL-скриптів самотужки.

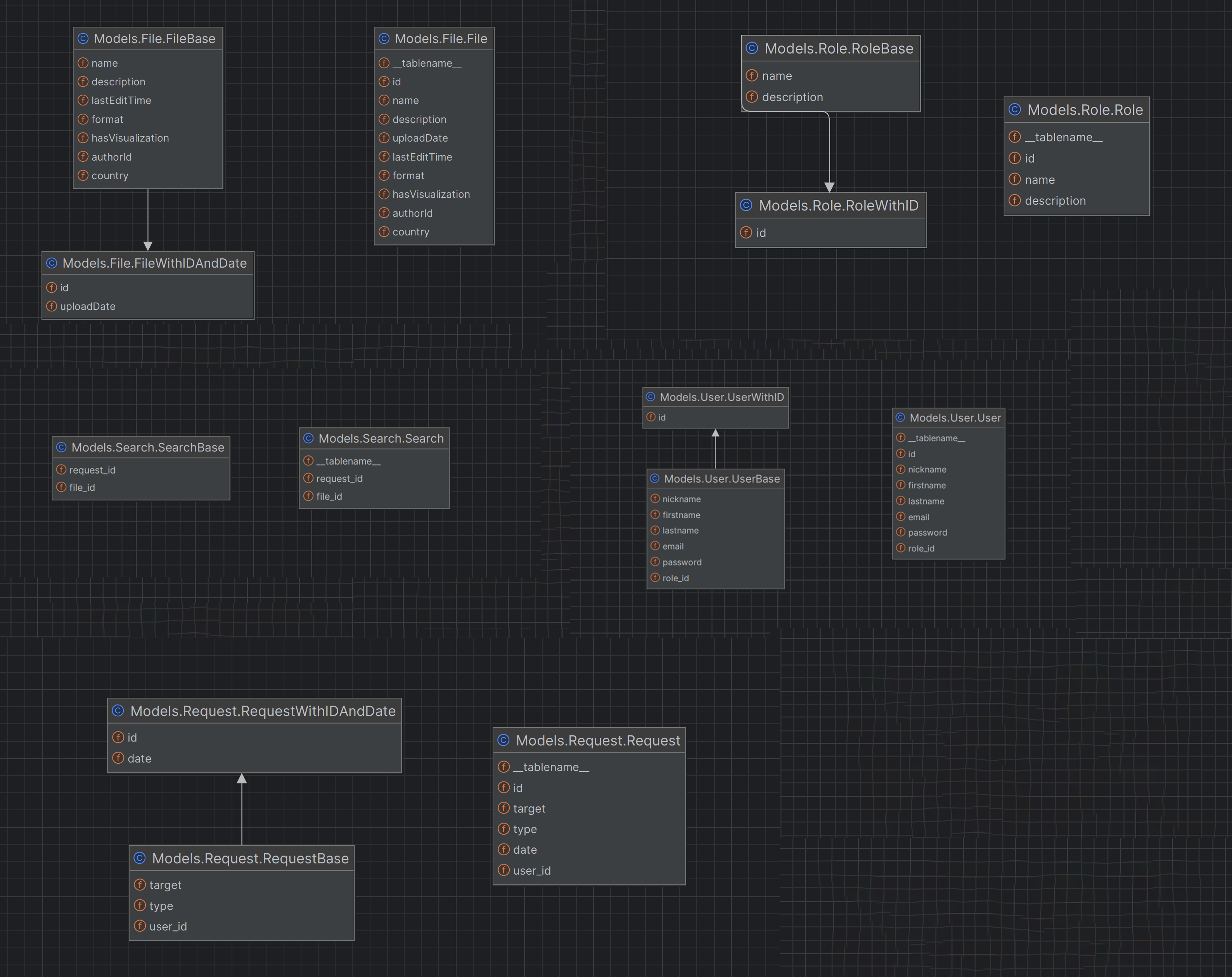

# Діаграма класів
# Середовище
# Database
from sqlalchemy import create_engine
from sqlalchemy.orm import sessionmaker
from sqlalchemy.ext.declarative import declarative_base
URL_DATABASE = 'mysql+pymysql://root:Simple_password@localhost:3306/mydb'
engine = create_engine(URL_DATABASE)
SessionLocal = sessionmaker(autocommit=False, autoflush=False, bind=engine)
Base = declarative_base()
# Dependencies
from fastapi import Depends
from Environment.database import SessionLocal
from typing import Annotated
from sqlalchemy.orm import Session
def get_db():
db = SessionLocal()
try:
yield db
finally:
db.close()
dependency = Annotated[Session, Depends(get_db)]
# Моделі
# File
from Environment.database import Base
from pydantic import BaseModel, Field
from sqlalchemy import Column, Integer, String, DateTime, Boolean, func
import datetime
class File(Base):
__tablename__ = 'file'
id = Column(Integer, primary_key=True, index=True, autoincrement=True)
name = Column(String(255))
description = Column(String(255), nullable=True)
uploadDate = Column(DateTime, default=func.now())
lastEditTime = Column(DateTime, default=func.now())
format = Column(String(45))
hasVisualization = Column(Boolean)
authorId = Column(Integer)
country = Column(String(45))
class FileBase(BaseModel):
name: str
description: str
lastEditTime: datetime.datetime
format: str
hasVisualization: bool
authorId: int
country: str
class FileWithIDAndDate(FileBase):
id: int
uploadDate: datetime.datetime
class Config:
from_attributes = True
# Request
import datetime
from Environment.database import Base
from pydantic import BaseModel, Field
from sqlalchemy import Column, Integer, String, DateTime, func
class Request(Base):
__tablename__ = 'request'
id = Column(Integer, primary_key=True, index=True, autoincrement=True)
target = Column(String(255))
type = Column(String(45))
date = Column(DateTime, default=func.now())
user_id = Column(Integer)
class RequestBase(BaseModel):
target: str
type: str
user_id: int
class RequestWithIDAndDate(RequestBase):
id: int
date: datetime.datetime
class Config:
from_attributes = True
# Role
from Environment.database import Base
from sqlalchemy import Column, Integer, String
from typing import Optional
from uuid import UUID, uuid4
from pydantic import BaseModel
class Role(Base):
__tablename__ = 'role'
id = Column(Integer, primary_key=True, index=True, autoincrement=True)
name = Column(String(45))
description = Column(String(255), nullable=True)
class RoleBase(BaseModel):
name: str
description: str
class RoleWithID(RoleBase):
id: int
class Config:
from_attributes = True
# Search
from Environment.database import Base
from pydantic import BaseModel, Field
from sqlalchemy import Column, Integer
class Search(Base):
__tablename__ = 'search'
request_id = Column(Integer, primary_key=True, index=True, nullable=False)
file_id = Column(Integer, nullable=False)
class SearchBase(BaseModel):
request_id: int
file_id: int
# User
from Environment.database import Base
from pydantic import BaseModel
from sqlalchemy import Column, Integer, String
class User(Base):
__tablename__ = 'user'
id = Column(Integer, primary_key=True, index=True, autoincrement=True)
nickname = Column(String(45))
firstname = Column(String(45))
lastname = Column(String(45))
email = Column(String(255))
password = Column(String(255))
role_id = Column(Integer)
class UserBase(BaseModel):
nickname: str
firstname: str
lastname: str
email: str
password: str
role_id: int
class UserWithID(UserBase):
id: int
class Config:
from_attributes = True
# Контролери
# file_routes
from Models import File
from fastapi import HTTPException, status
from Environment.dependencies import dependency
from fastapi import APIRouter
from typing import List
router = APIRouter()
@router.post("", status_code=status.HTTP_201_CREATED, response_model=File.FileBase)
async def create_file(file: File.FileBase, db: dependency):
db_file = File.File(**file.dict())
db.add(db_file)
db.commit()
db.refresh(db_file)
return db_file
from fastapi import HTTPException
@router.put("{file_id}", status_code=status.HTTP_200_OK, response_model=File.FileBase)
async def update_file(file_id: int, file: File.FileBase, db: dependency):
db_file = db.query(File.File).filter(File.File.id == file_id).first()
if db_file is None:
raise HTTPException(status_code=404, detail="File not found")
# Update attributes only if they are not None in the input file
for var, value in vars(file).items():
if value is not None:
setattr(db_file, var, value)
db.commit()
db.refresh(db_file)
return db_file
@router.get("", status_code=status.HTTP_200_OK, response_model=List[File.FileWithIDAndDate])
async def read_all_files(db: dependency):
files = db.query(File.File).all()
if not files:
raise HTTPException(status_code=404, detail="No files found")
return files
@router.get("{file_id}", status_code=status.HTTP_200_OK, response_model=File.FileWithIDAndDate)
async def read_file(file_id: int, db: dependency):
file = db.query(File.File).filter(File.File.id == file_id).first()
if file is None:
raise HTTPException(status_code=404, detail="File not found")
return file
@router.delete("{file_id}", status_code=status.HTTP_204_NO_CONTENT)
async def delete_file(file_id: int, db: dependency):
file = db.query(File.File).filter(File.File.id == file_id).first()
if file is None:
raise HTTPException(status_code=404, detail="File not found")
db.delete(file)
db.commit()
return None # Returning None with status_code 204 NO CONTENT
# request_routes
from Models import Request, User
from fastapi import HTTPException, status
from Environment.dependencies import dependency
from fastapi import APIRouter
from typing import List
router = APIRouter()
@router.post("", status_code=status.HTTP_201_CREATED, response_model=Request.RequestBase)
async def create_request(request: Request.RequestBase, db: dependency):
db_request = Request.Request(**request.dict())
user_id = request.user_id # Replace with the actual field name in your Request model
user = db.query(User.User).filter(User.User.id == user_id).first()
if user is None:
# Raise an exception if the user does not exist
raise HTTPException(status_code=status.HTTP_404_NOT_FOUND, detail="User not found")
db.add(db_request)
db.commit()
db.refresh(db_request)
return db_request
# GET endpoint to retrieve all requests
@router.get("", status_code=status.HTTP_200_OK, response_model=List[Request.RequestWithIDAndDate])
async def read_all_requests(db: dependency):
requests = db.query(Request.Request).all()
if not requests:
raise HTTPException(status_code=404, detail="No requests found")
return requests
@router.get("{request_id}", status_code=status.HTTP_200_OK, response_model=Request.RequestWithIDAndDate)
async def read_request(request_id: int, db: dependency):
request = db.query(Request.Request).filter(Request.Request.id == request_id).first()
if request is None:
raise HTTPException(status_code=404, detail="Request not found")
return request
@router.delete("{request_id}", status_code=status.HTTP_204_NO_CONTENT)
async def delete_request(request_id: int, db: dependency):
request = db.query(Request.Request).filter(Request.Request.id == request_id).first()
if request is None:
raise HTTPException(status_code=404, detail="Request not found")
db.delete(request)
db.commit()
return None # Returning None with status_code 204 NO CONTENT
# role_routes
from Models import Role
from fastapi import HTTPException, status
from Environment.dependencies import dependency
from fastapi import APIRouter
from typing import List
router = APIRouter()
@router.post("", status_code=status.HTTP_201_CREATED, response_model=Role.RoleBase)
async def create_role(role: Role.RoleBase, db: dependency):
db_role = Role.Role(**role.dict())
db.add(db_role)
db.commit()
db.refresh(db_role)
return db_role
@router.put("{role_id}", status_code=status.HTTP_200_OK, response_model=Role.RoleBase)
async def update_role(role_id: int, role: Role.RoleBase, db: dependency):
db_role = db.query(Role.Role).filter(Role.Role.id == role_id).first()
if db_role is None:
raise HTTPException(status_code=404, detail="Role not found")
for var, value in vars(role).items():
setattr(db_role, var, value) if value else None
db.add(db_role)
db.commit()
db.refresh(db_role)
return db_role
# GET endpoint to retrieve all roles
@router.get("", status_code=status.HTTP_200_OK, response_model=List[Role.RoleWithID])
async def read_all_roles(db: dependency):
roles = db.query(Role.Role).all()
if not roles:
raise HTTPException(status_code=404, detail="No roles found")
return roles
@router.get("{role_id}", status_code=status.HTTP_200_OK, response_model=Role.RoleWithID)
async def read_role(role_id: int, db: dependency):
role = db.query(Role.Role).filter(Role.Role.id == role_id).first()
if role is None:
raise HTTPException(status_code=404, detail="Role not found")
return role
# DELETE endpoint to remove a role by id
@router.delete("{role_id}", status_code=status.HTTP_204_NO_CONTENT)
async def delete_role(role_id: int, db: dependency):
role = db.query(Role.Role).filter(Role.Role.id == role_id).first()
if role is None:
raise HTTPException(status_code=404, detail="Role not found")
db.delete(role)
db.commit()
return None # Returning None with status_code 204 NO CONTENT
# search_routes
from Models import Search, File, Request
from fastapi import HTTPException, status
from Environment.dependencies import dependency
from fastapi import APIRouter
from typing import List
router = APIRouter()
@router.post("", status_code=status.HTTP_201_CREATED, response_model=Search.SearchBase)
async def create_search(search: Search.SearchBase, db: dependency):
db_search = Search.Search(**search.dict())
request_id = search.request_id
request = db.query(Request.Request).filter(Request.Request.id == request_id).first()
if request is None:
# Raise an exception if the user does not exist
raise HTTPException(status_code=status.HTTP_404_NOT_FOUND, detail="Request not found")
file_id = search.file_id
file = db.query(File.File).filter(File.File.id == file_id).first()
if file is None:
# Raise an exception if the user does not exist
raise HTTPException(status_code=status.HTTP_404_NOT_FOUND, detail="File not found")
db.add(db_search)
db.commit()
db.refresh(db_search)
return db_search
@router.get("", status_code=status.HTTP_200_OK, response_model=List[Search.SearchBase])
async def read_all_searches(db: dependency):
searches = db.query(Search.Search).all()
if not searches:
raise HTTPException(status_code=404, detail="No searches found")
return searches
@router.get("{request_id}", status_code=status.HTTP_200_OK, response_model=Search.SearchBase)
async def read_search(request_id: int, db: dependency):
search = db.query(Search.Search).filter(Search.Search.request_id == request_id).first()
if search is None:
raise HTTPException(status_code=404, detail="Search not found")
return search
@router.delete("{search_id}", status_code=status.HTTP_204_NO_CONTENT)
async def delete_search(request_id: int, db: dependency):
search = db.query(Search.Search).filter(Search.Search.request_id == request_id).first()
if search is None:
raise HTTPException(status_code=404, detail="Search not found")
db.delete(search)
db.commit()
return None # Returning None with status_code 204 NO CONTENT
# user_routes
from Models import User, Role
from fastapi import HTTPException, status
from Environment.dependencies import dependency
from fastapi import APIRouter
from typing import List
router = APIRouter()
@router.post("", status_code=status.HTTP_201_CREATED, response_model=User.UserBase)
async def create_user(user: User.UserBase, db: dependency):
db_user = User.User(**user.dict())
role_id = user.role_id # Replace with the actual field name in your Request model
role = db.query(Role.Role).filter(Role.Role.id == role_id).first()
if role is None:
# Raise an exception if the user does not exist
raise HTTPException(status_code=status.HTTP_404_NOT_FOUND, detail="Role not found")
db.add(db_user)
db.commit()
db.refresh(db_user)
return db_user
@router.put("{user_id}", status_code=status.HTTP_200_OK, response_model=User.UserBase)
async def update_user(user_id: int, user: User.UserBase, db: dependency):
db_user = db.query(User.User).filter(User.User.id == user_id).first()
if db_user is None:
raise HTTPException(status_code=404, detail="User not found")
for var, value in vars(user).items():
setattr(db_user, var, value) if value else None
role_id = user.role_id # Replace with the actual field name in your Request model
role = db.query(Role.Role).filter(Role.Role.id == role_id).first()
if role is None:
# Raise an exception if the user does not exist
raise HTTPException(status_code=status.HTTP_404_NOT_FOUND, detail="Role not found")
db.add(db_user)
db.commit()
db.refresh(db_user)
return db_user
# GET endpoint to retrieve all users
@router.get("", status_code=status.HTTP_200_OK, response_model=List[User.UserWithID])
async def read_all_users(db: dependency):
users = db.query(User.User).all()
if not users:
raise HTTPException(status_code=404, detail="No users found")
return users
@router.get("{user_id}", status_code=status.HTTP_200_OK, response_model=User.UserWithID)
async def read_user(user_id: int, db: dependency):
user = db.query(User.User).filter(User.User.id == user_id).first()
if user is None:
raise HTTPException(status_code=404, detail="User not found")
return user
@router.delete("{user_id}", status_code=status.HTTP_204_NO_CONTENT)
async def delete_user(user_id: int, db: dependency):
user = db.query(User.User).filter(User.User.id == user_id).first()
if user is None:
raise HTTPException(status_code=404, detail="User not found")
db.delete(user)
db.commit()
return None # Returning None with status_code 204 NO CONTENT
# Файл запуску програми
# main
from fastapi import FastAPI
from Routes.user_routes import router as user_router
from Routes.role_routes import router as role_router
from Routes.search_routes import router as search_router
from Routes.request_routes import router as request_router
from Routes.file_routes import router as file_router
app = FastAPI(title="6_Lab_API", description='Bla description')
app.include_router(user_router, tags=["users"], prefix="/users")
app.include_router(role_router, tags=["roles"], prefix="/roles")
app.include_router(request_router, tags=["requests"], prefix="/requests")
app.include_router(file_router, tags=["files"], prefix="/files")
app.include_router(search_router, tags=["search"], prefix="/search")
